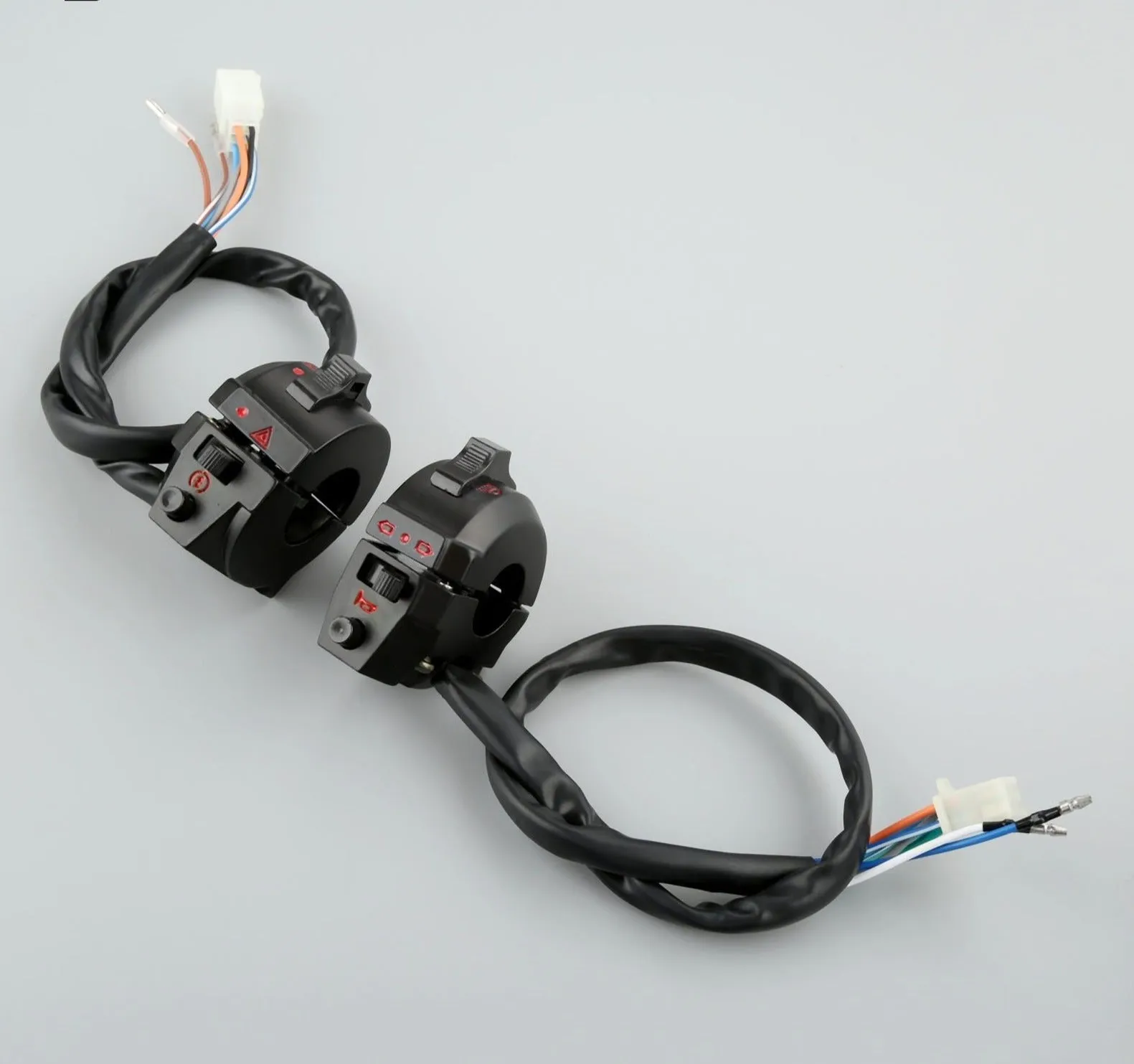

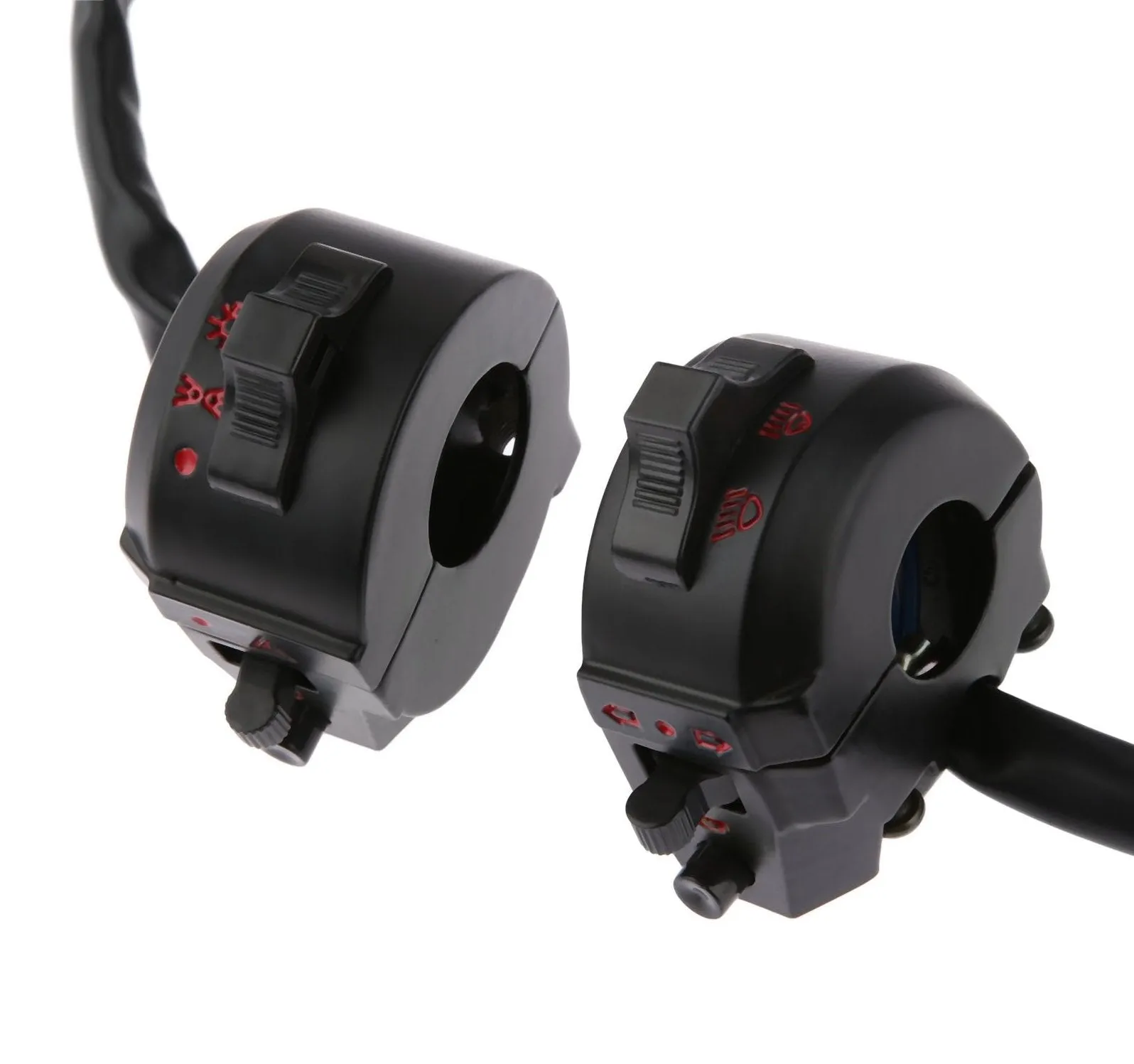

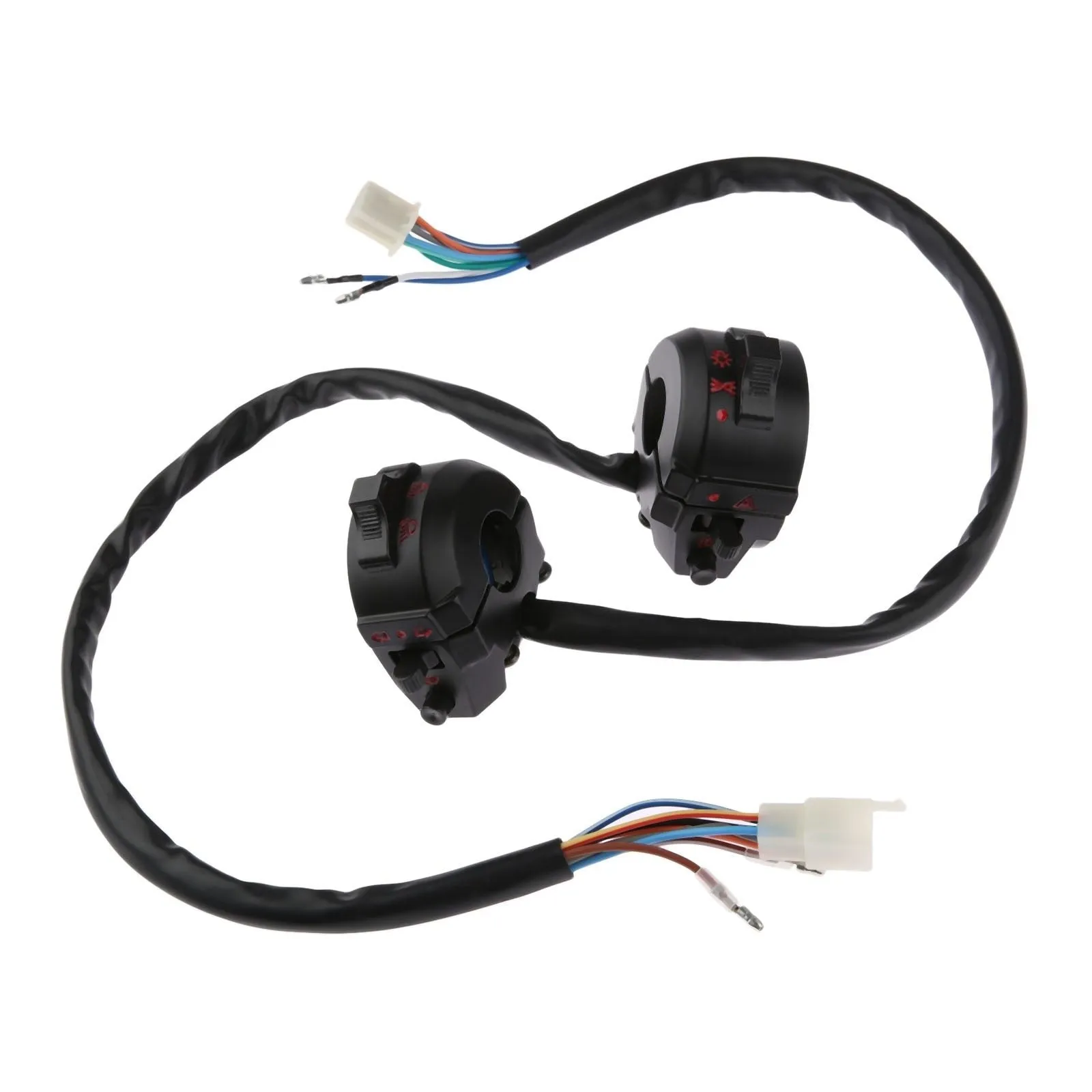

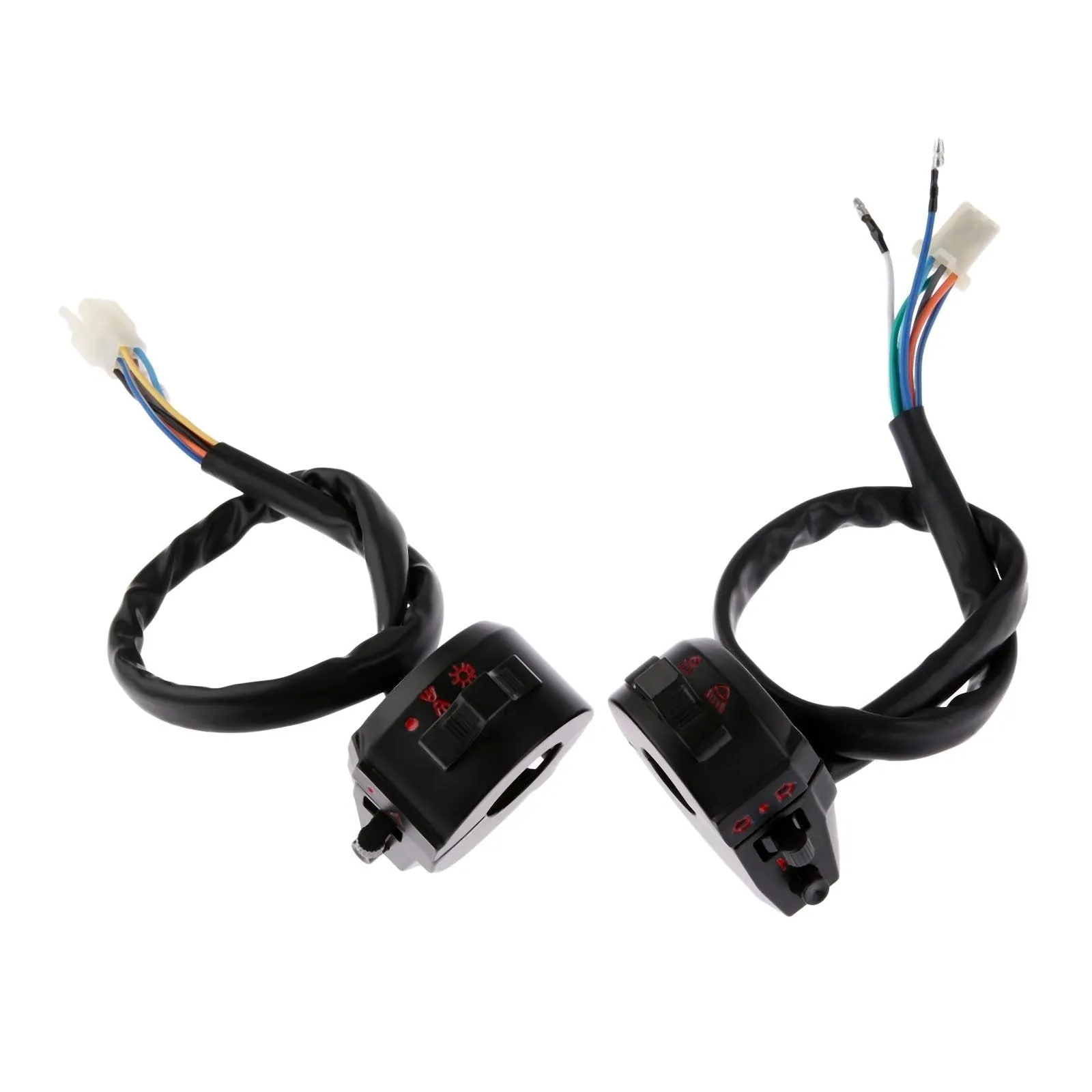

Simple café racer style handlebar switches

Universal handlebar switch controls

Replace those old and worn out switches with these new units

No more switches that don't work when you need them too

Universal fitment on most 7/8" handlebars and 12V motorcycles

Reproduction vintage switch controls

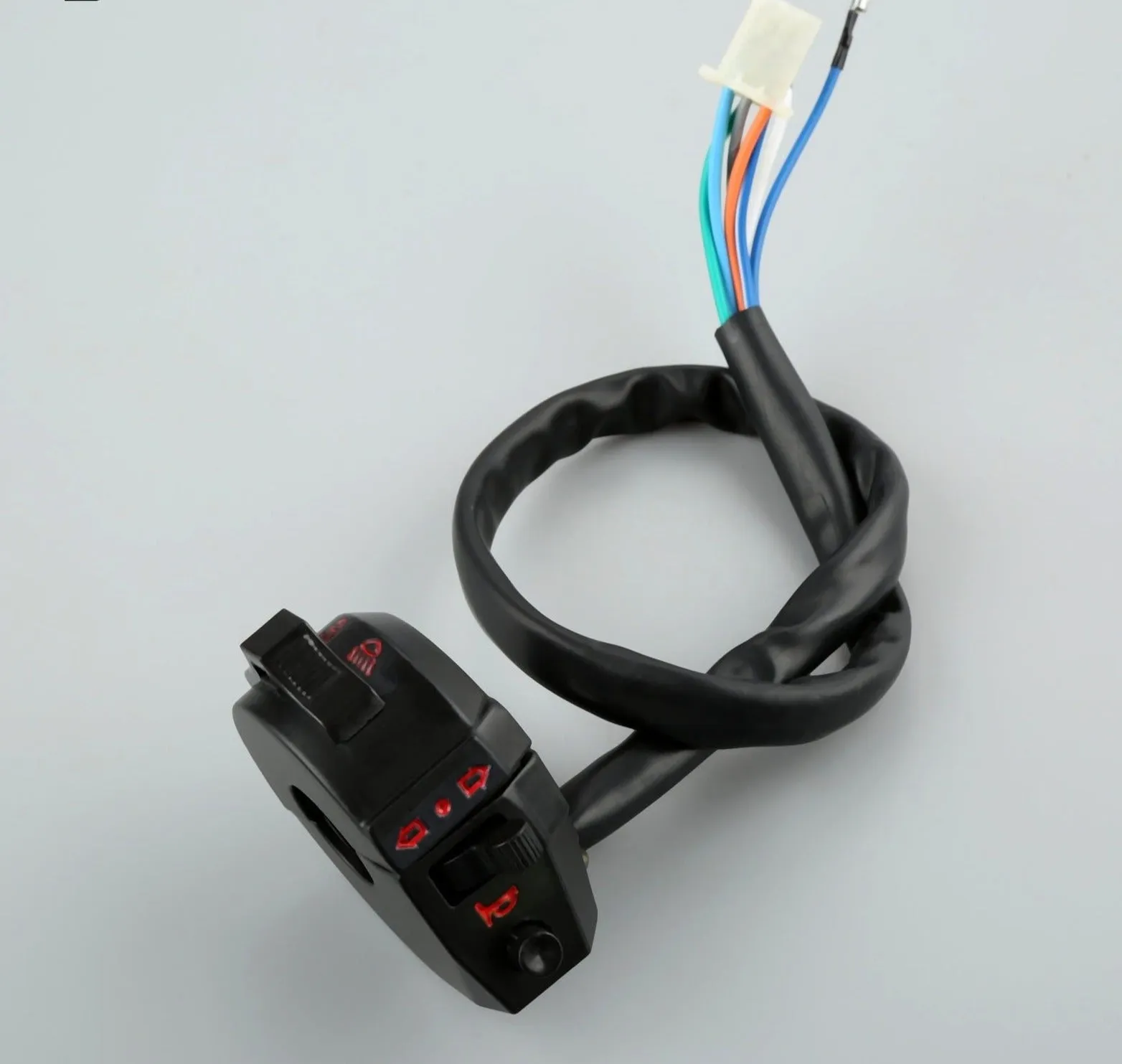

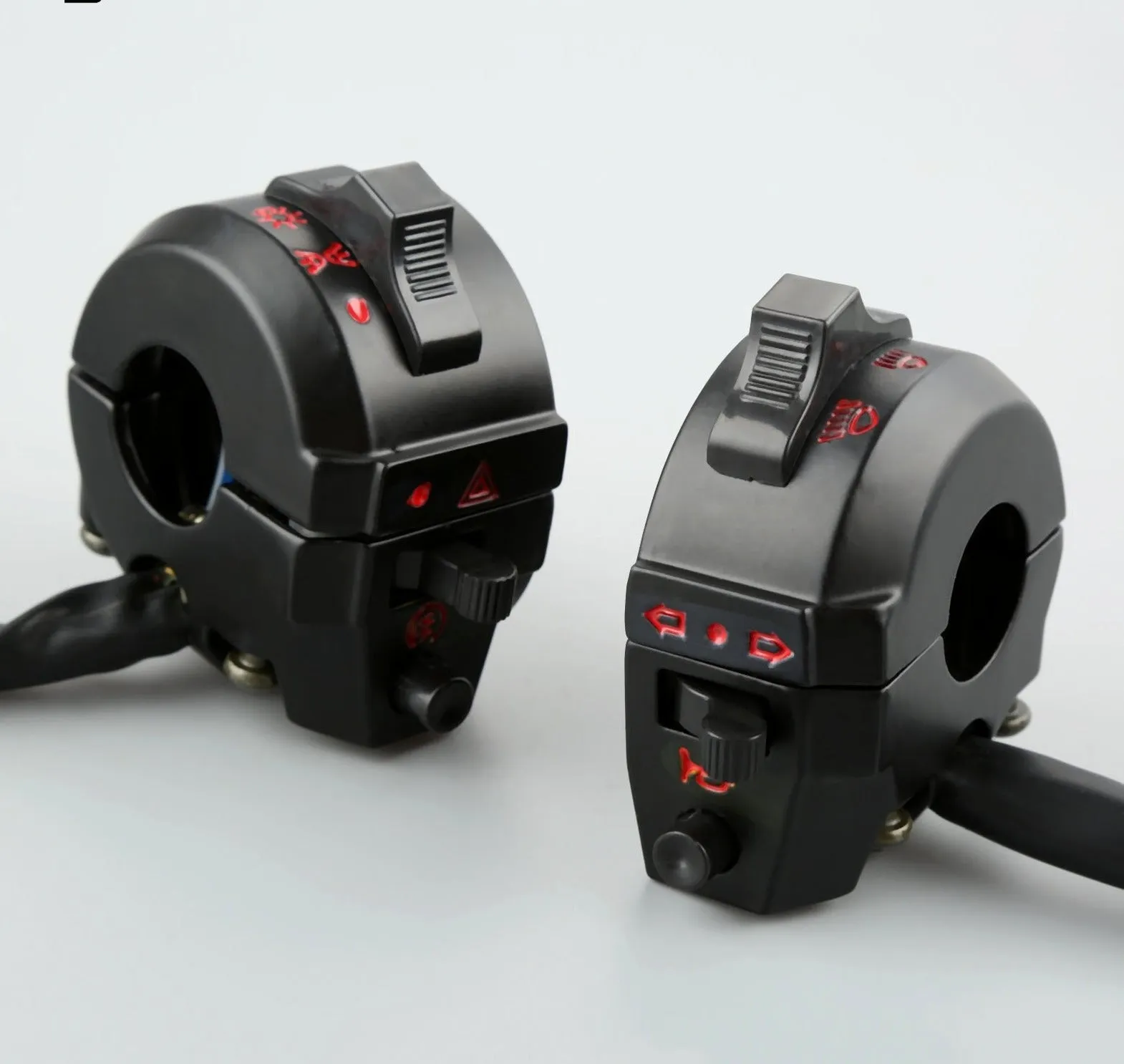

Functions on left:
- Indicator
- Horn
- Light switch (low/high beam)

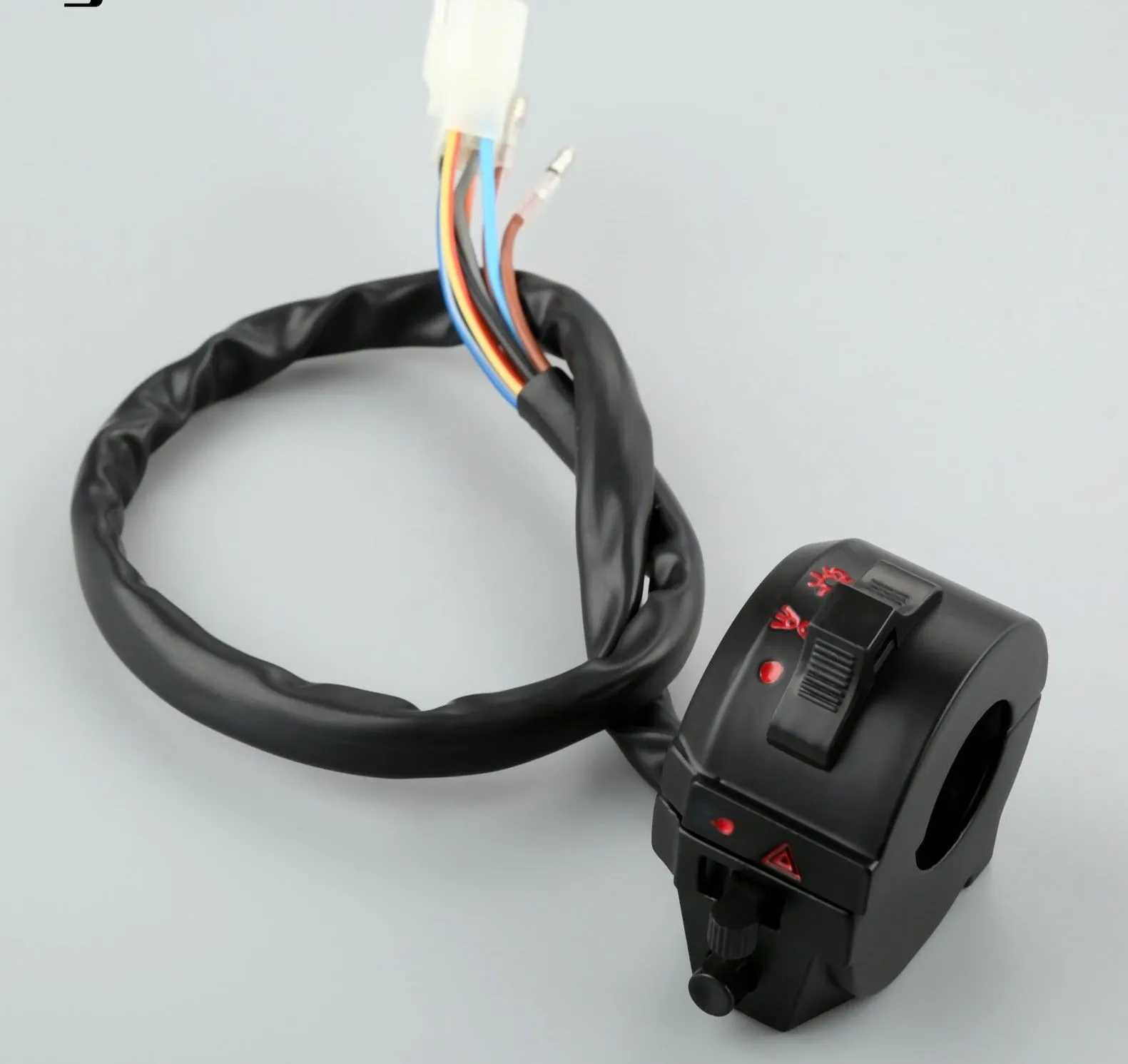

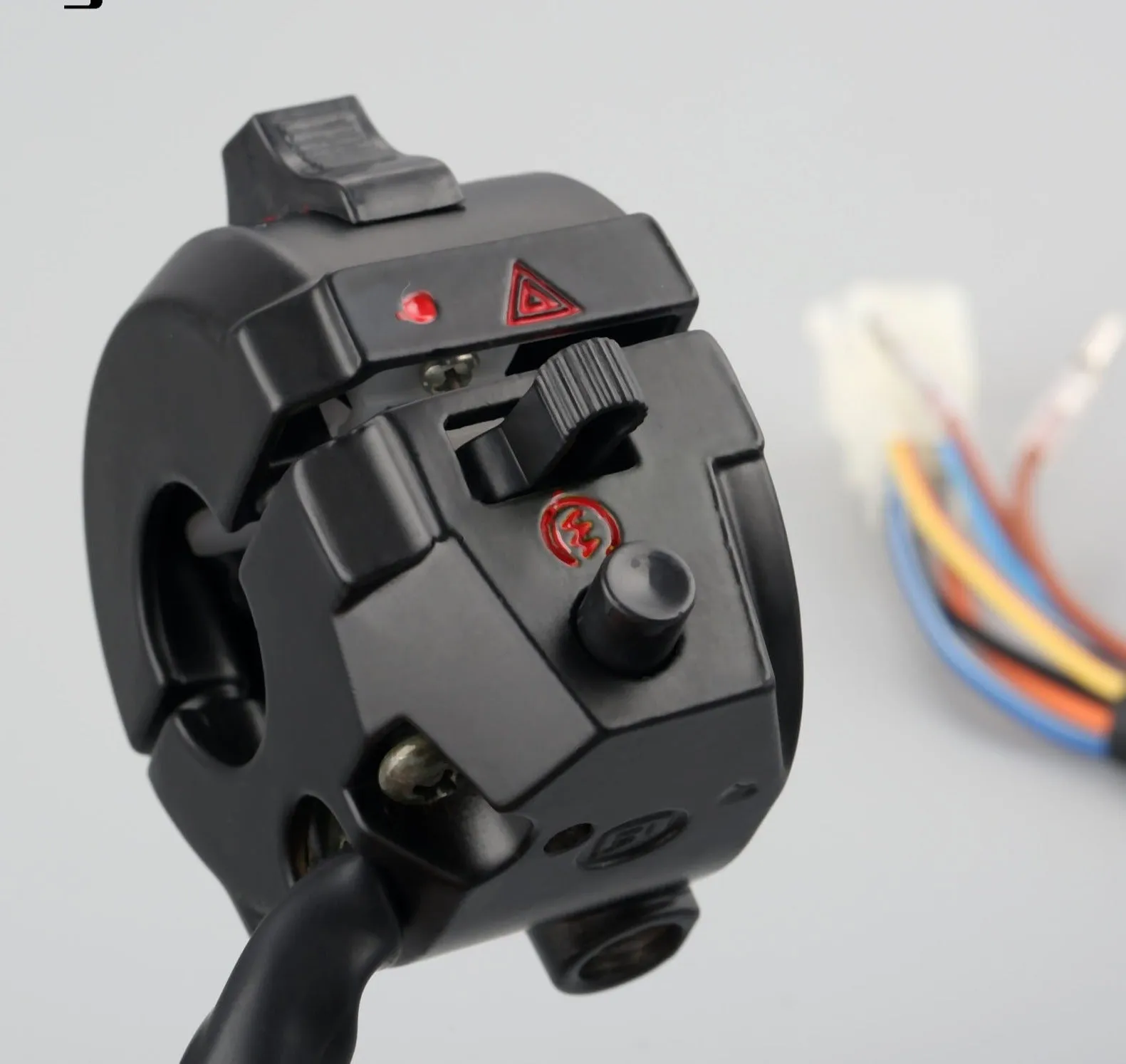

Functions on right:
- Starter
- Warning flashers
- Light switch (off / light / light)

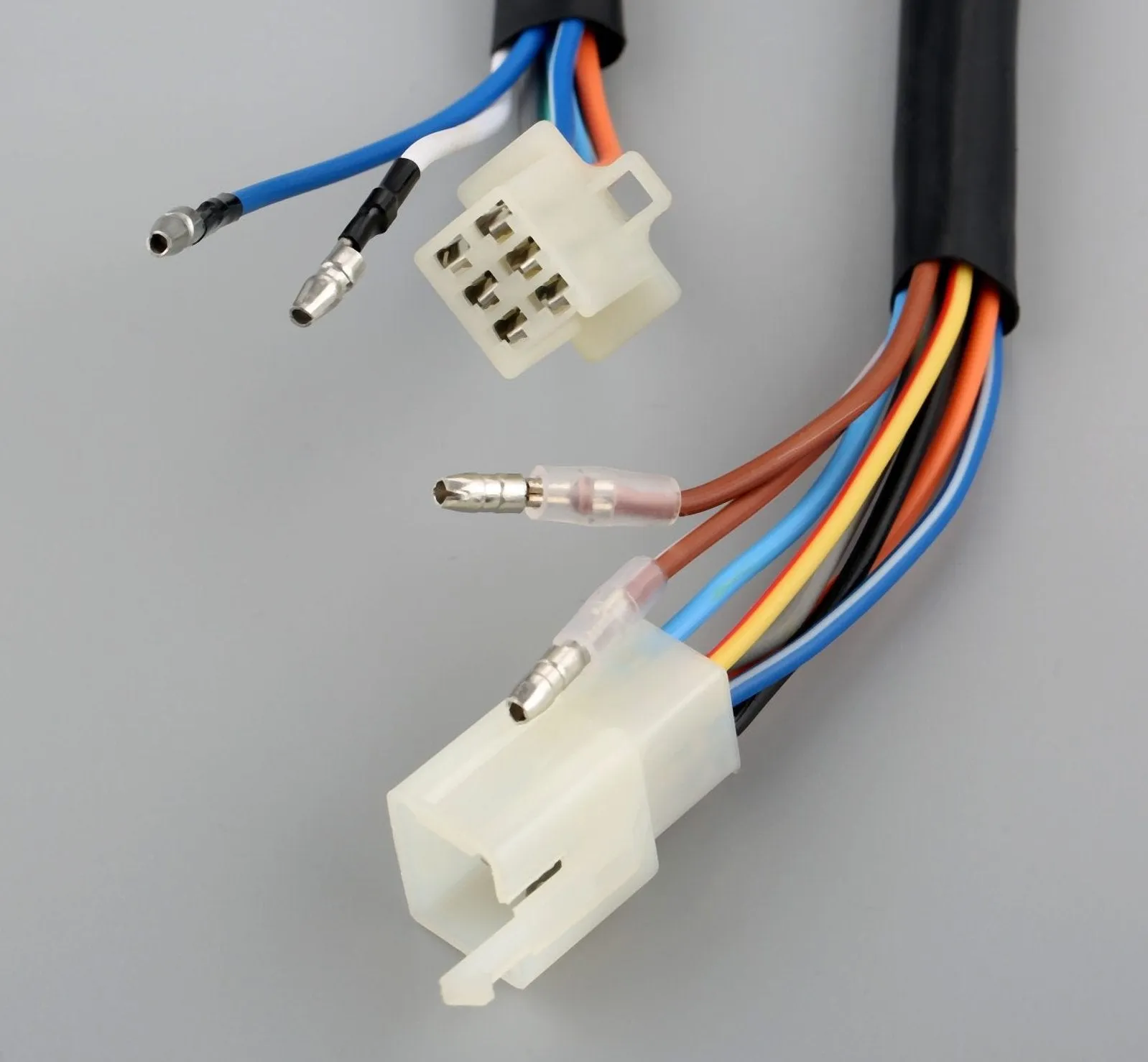

Wiring diagram:

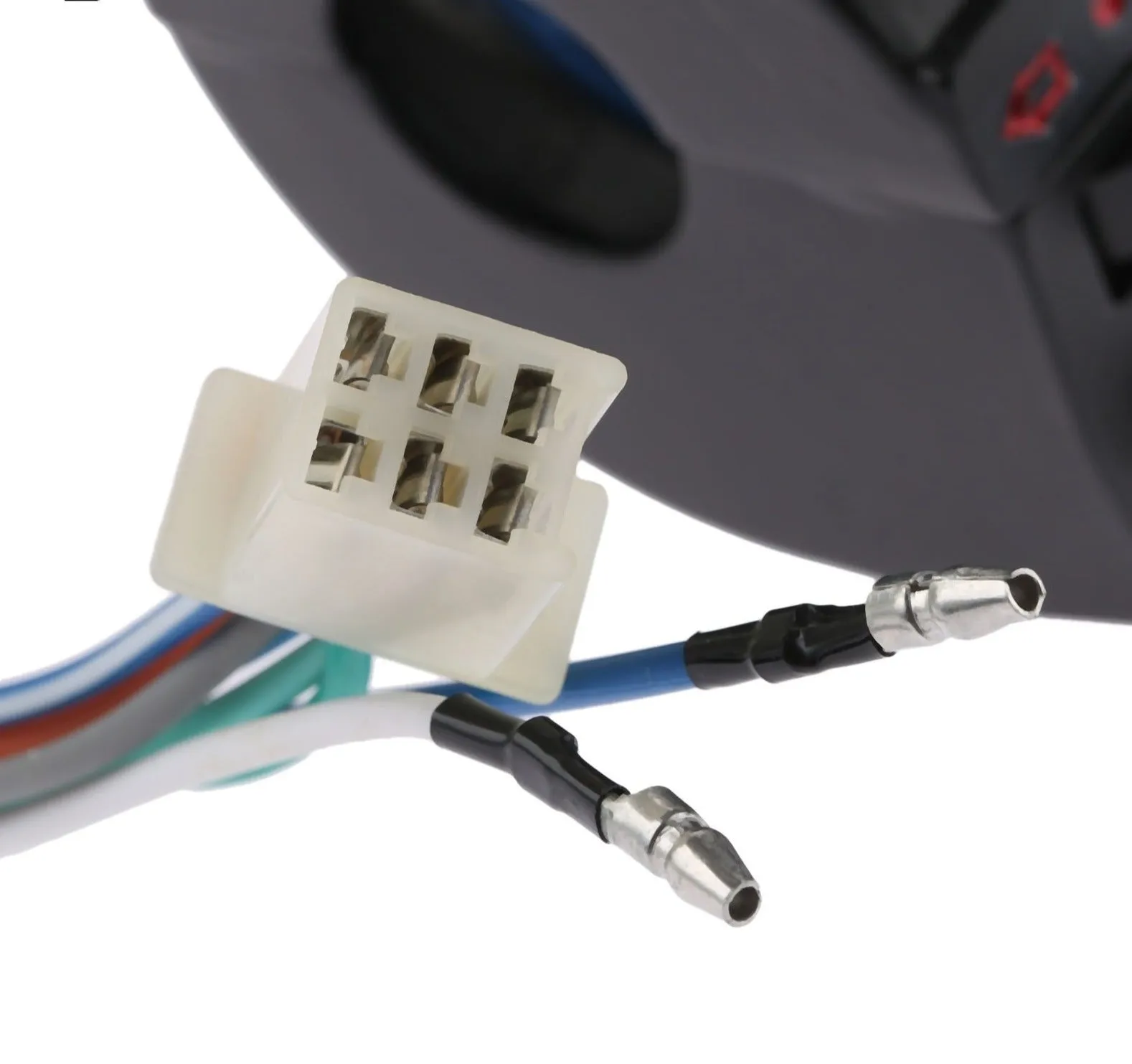

Wire for the left:
Blue: daylight lights
White: night lights
Blue/white: positive 12v for driving light
Light blue: direction indicator, right
Grey: positive 12v for indicators
Orange: direction indicator, left
Light green: horn (input)
Green: horn (output)

Wiring for the right:
Black: positive 12v (switched by the ignition switch)
Brown: speedo light
Brown/white: position lights
Blue white: daytime lights
Grey: positive 12v for hazard lights
Light blue: warning flashers
Orange: Hazard lights
Yellow/red: ignition switch

Material Type: Aluminum case
Color: Black

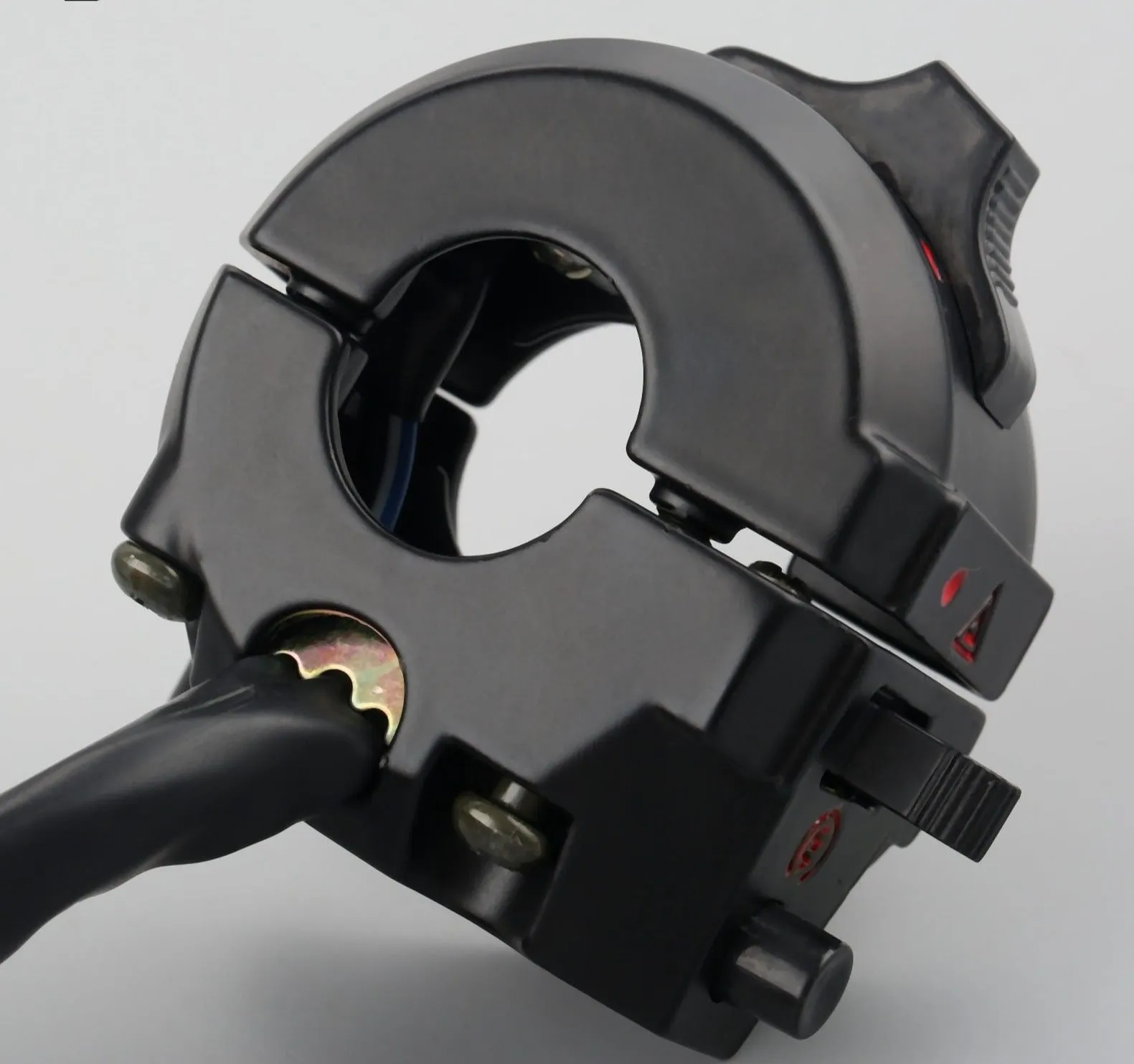

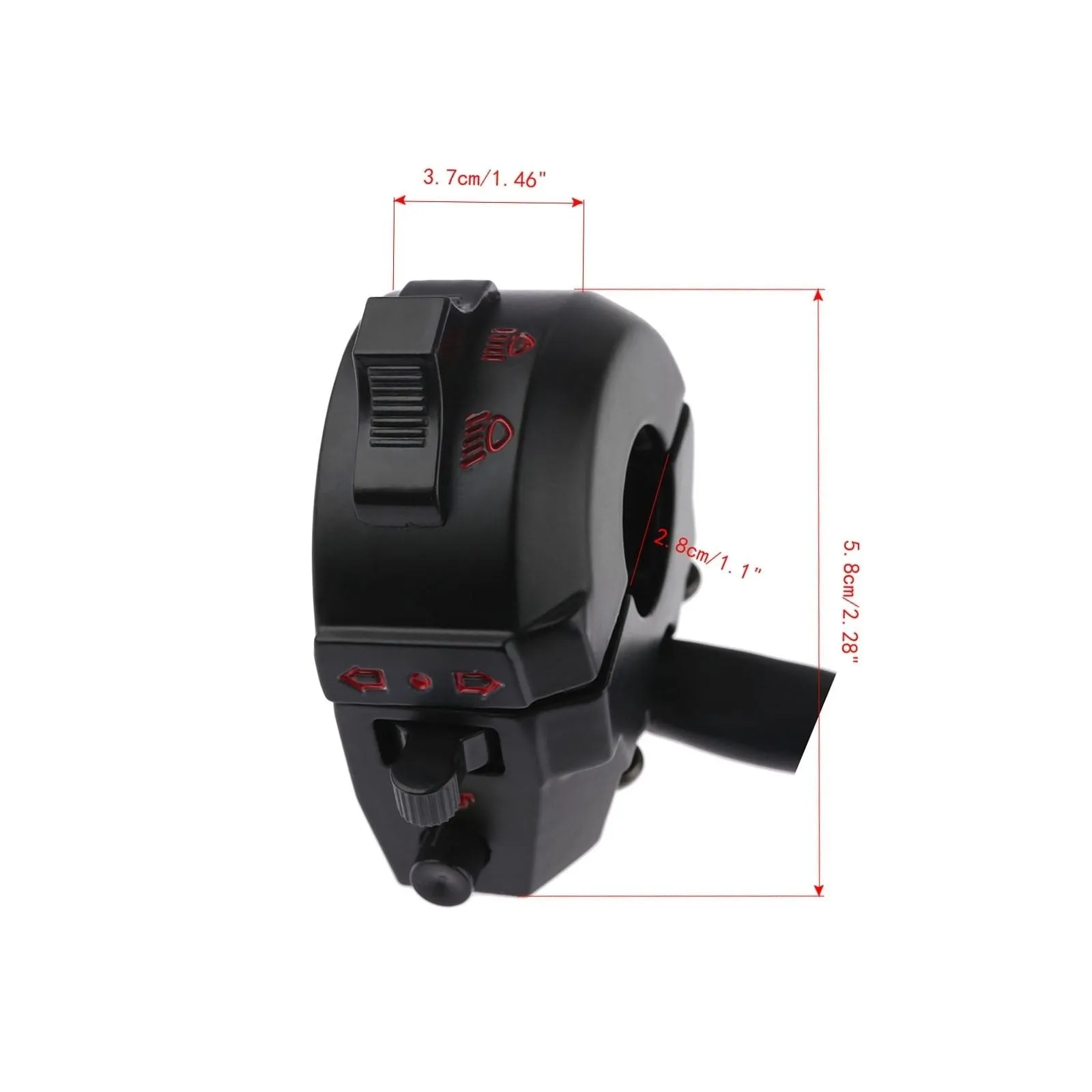

Fitment: To fit 7/8" (22mm) handlebar.
NOTE: The wiring may need to be modified in order to properly fit

*Installation instructions not included (use multi-meter to determine switch wiring)*
